China is the world's largest elevator market, accounting for 43% of the global total. From 2002 to 2022, the number of elevators in China has increased year by year, and by the end of 2022, the number of elevators in use in China has reached 9.6446 million units, and the compound annual growth rate (CAGR) of the past five years has reached 11%. With the improvement of social requirements for energy conservation and environmental protection, elevator as an important part of building energy consumption, its energy conservation has become an important part of green city construction. Elevator energy saving not only helps to reduce building energy consumption, but also reduces environmental pressure and promotes urban green development to a new level.
At present, in the elevator industry, the more energy-saving permanent magnet synchronous traction machine has become the mainstream model of elevator motor, and the elevator energy regeneration system has become a new direction of elevator energy saving.
The elevator is a potential load, which can be simply understood as a fixed pulley group with the car and the counterweight respectively suspended at both ends, and the balance coefficient between the car and the counterweight block is 0.45. Then when the elevator light load up (less than 45% of the limit load) or heavy load down (higher than 45% of the limit load) elevator power system under the action of potential energy is a power generation state. This excess energy is temporarily stored in the capacitor of the inverter DC circuit, as the working time of the elevator continues, the power and voltage in the capacitor are higher and higher, if not released, it will lead to overvoltage failure, so that the elevator stops working. In order to release the electric energy in the capacitor, the existing elevator power system usually consumes it through the external heating resistance to ensure the normal operation of the elevator. After the elevator power system increases the energy system, the electricity generated by the elevator under the power generation condition can be returned to the building's power grid through the energy feedback system for other loads.
The use of resistance braking mode can ensure the normal operation of the elevator, but the electric energy generated by the elevator running time is wasted by the way of resistance heating, and it also increases the burden of the elevator room control cooling system and increases the power consumption of air conditioning.
The electric elevator system equipped with energy feedback system, through the energy feedback system, the energy generated by the elevator operation is returned to the power grid for the use of other loads in the building, so the purpose of node is realized. In addition, due to the non-resistance combustion heat, reduce the ambient temperature of the machine room, improve the operating temperature of the elevator control system, so that the control system no longer crashes, extend the service life of the elevator, but also reduce energy consumption for electric energy consumption.
Product characteristics
This system is mainly used in the old elevator retrofitting energy feedback function, has the characteristics of strong versatility, beautiful appearance, short supply cycle, convenient construction, simple declaration, can widely meet the energy feedback retrofitting and transformation needs of the elevator in use.
Function overview
When the elevator goes up with light load and down with heavy load, it generates a lot of kinetic energy or potential energy, which will be converted into renewable electric energy at the side of the tractor. When the energy feedback function is not configured, the elevator generally uses the brake resistor to convert the renewable electric energy into heat energy. This not only wastes a lot of power, but also causes the temperature of the room to rise, affects the life of the components, and increases the consumption of the air conditioning in the room. When the energy feedback system is configured, this part of the regenerative energy can be returned to the power grid to achieve the purpose of energy saving. It improves the energy utilization rate of the elevator, alleviates the temperature rise caused by heating in the machine room, protects the healthy use of components, and reduces the use frequency of the air conditioner in the machine room.
Product application scope
The main application scenarios of this product are the in-use ladder that is not configured with the energy feedback function and the occasions where the energy feedback function is installed. Most active ladders can handle it. It is recommended to choose the elevator with high frequency of use, high floor and large tonnage, which has the best energy saving effect.
Safety and stability
Energy feedback device and elevator compatibility High installation system does not change the actual elevator control line, the elevator running stability is guaranteed; When the device itself fails, the elevator will automatically return to the non-energy feedback mode, using the brake resistance to consume electricity, does not affect the elevator operation. The device includes power grid fault protection function - selfprotection for power grid overvoltage, undervoltage, overfrequency, underfrequency, etc.
Commercial value
Directly save the electricity cost of public equipment

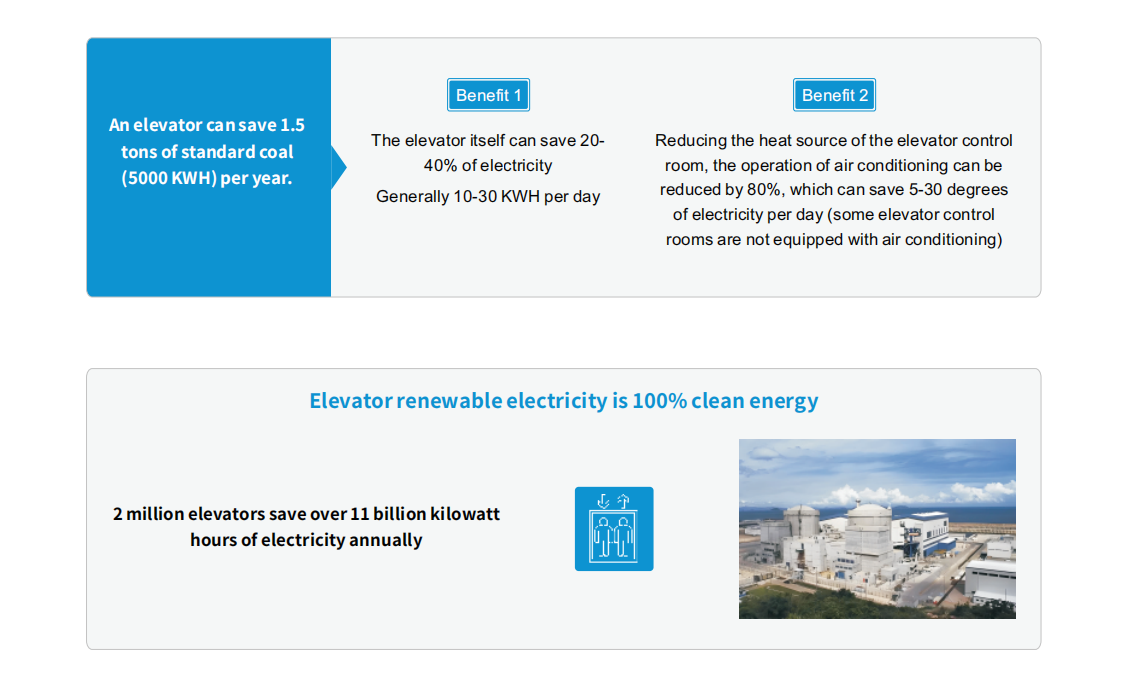

The energy feedback system sends the elevator's renewable electricity back into the building system, where it is used for public lighting, water pumps, weak current systems or other elevators in the building, reducing the power consumption of the entire building. As shown in the figure.

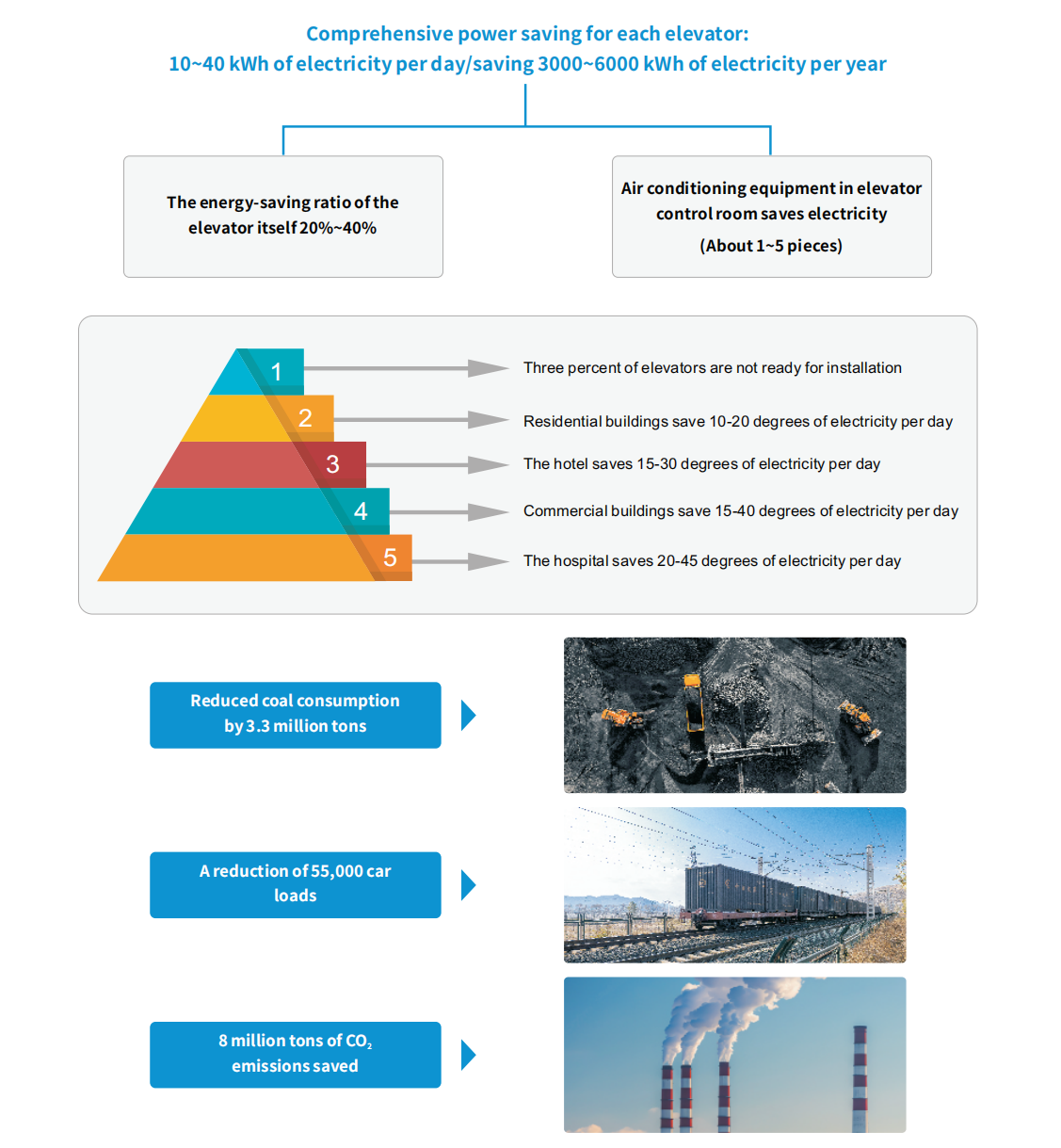

According to the calculation of previous projects, the average power saving rate of the energy feedback system is 25%, according to the average power consumption of a single elevator in China 40kWh, it can save 10 KWH of electricity per day, that is, 3650 KWH of electricity per year.
Indirectly save the electricity cost of air conditioning in the equipment room
The air conditioning in the machine room can save electricity. According to a 2-piece air conditioning unit that operates for 3 months every summer and works 16 hours a day, it consumes more than 2000 degrees of electricity a year. The energy feedback device can greatly reduce the working time of the air conditioner in the equipment room and reduce the electricity cost of the air conditioner. Note: The calculation formula is for valuation, subject to actual working conditions.
Save on elevator maintenance
The temperature of the equipment room is effectively reduced, the life of the elevator parts can be effectively extended, and the number of parts replacement is reduced. Taking the capacitor in the inverter as an example, when the ambient temperature exceeds the allowable working temperature, the temperature is 10 degrees per liter, and the service life of the capacitor is reduced by half.
Carbon index conversion
Conversion of carbon indicators (also known as carbon emissions) usually involves the conversion of different forms of carbon or energy into a uniform unit of measure, such as carbon dioxide equivalent (CO2e) or tons of carbon (tC). Different energy sources produce different amounts of carbon dioxide during combustion or use. For example, the burning of fossil fuels such as coal, oil and gas produces large amounts of carbon dioxide. In order to convert this energy consumption into carbon emissions, we need to use their emission factors. Emission factors are usually expressed in terms of the amount of carbon dioxide produced per unit of energy source (e.g., per ton of coal, per cubic meter of natural gas, per liter of gasoline, etc.). Energy saving in elevators is equivalent to reducing carbon emissions.
Summary
The energy-saving unit of K-DRIVE has not only brought significant energy-saving effects to the elevator system through technological innovation, but also promoted the efficient utilization of power resources, making a positive contribution to the promotion of low-carbon lifestyle. Firstly, the implementation of a 20% -40% energy-saving rate for elevator energysaving units not only reduces the operating costs of elevators, but also brings considerable economic benefits to the company. Meanwhile, due to the reduction of energy consumption and dependence on fuel, it indirectly reduces carbon emissions and has significant environmental benefits. Secondly, the energy-saving unit of the elevator promotes the micro cycle formed by the integration of electricity consumption and power generation. In the application process, the regenerated energy generated during the operation of traditional elevator systems can be recovered and reused, forming a virtuous energy cycle. Finally, the application of energy-saving units in elevators has made the elevator system an important component of lowcarbon life. By reducing the energy consumption of elevator systems and reducing carbon emissions, it not only benefits personal health but also helps to protect the Earth's environment and achieve sustainable development.
